For Lead-acid batteries > Regenerator > For 6V~48V

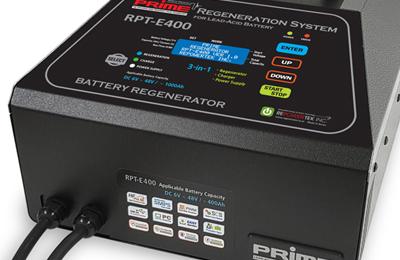

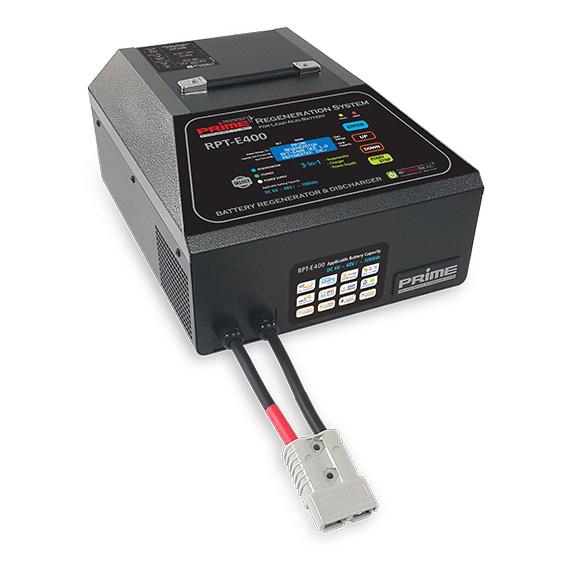

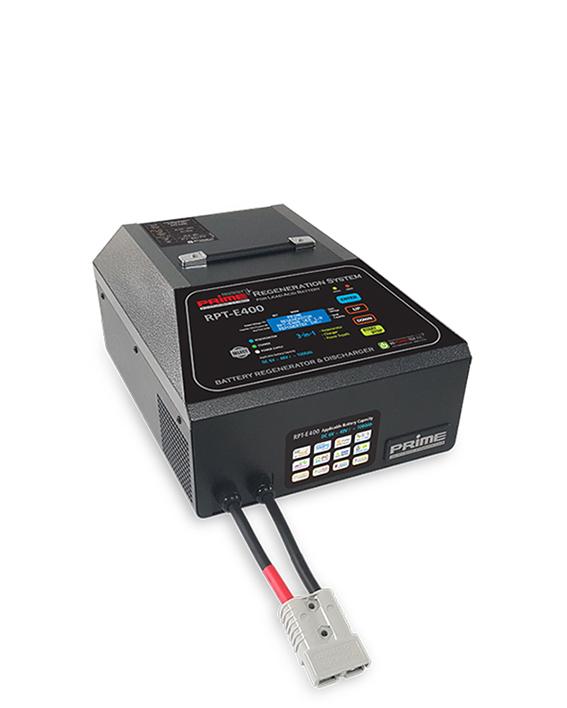

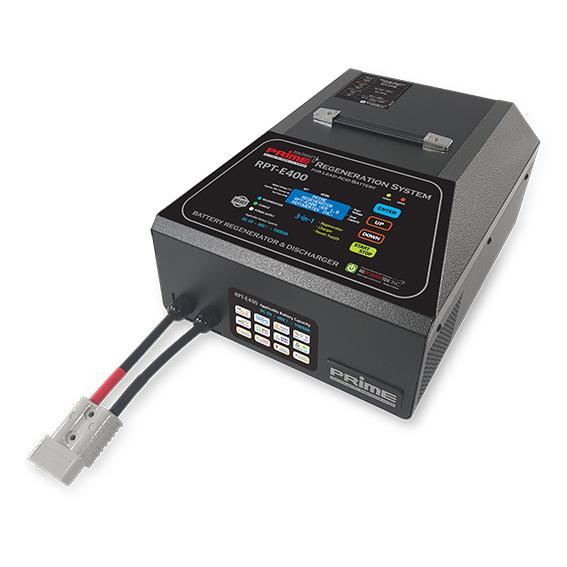

RPT-E400
For all types of Lead-Acid Batteries
3-in-1 Multifunctional
· High-Frequency Regenerator
· Smart Charger
· DC Power Supply
· Smart Charger
· DC Power Supply
Key Points
Extends Battery Lifecycle: Prolongs lead-acid battery lifespan by 2× to 3× using advanced high-frequency pulse technology (up to 40kHz).
Broad Compatibility: Restores and recharges all types of 6V–48V lead-acid batteries, including GEL, AGM VRLA, Telecom UPS, and Forklift batteries.
The RPT-E400 model is optimized for group connections of 2V batteries (6V to 48V, ~400Ah) and 12V batteries (24V to 48V).
High-Capacity Processing: Supports single-process restoration up to 40~400Ah
Energy Efficient & Cost-Saving: Utilizes SMPS switching control to achieve ultra-low power consumption with a maximum power draw of 2kW.
User-Friendly Operation: Optimization of operating conditions for all countries
Broad Compatibility: Restores and recharges all types of 6V–48V lead-acid batteries, including GEL, AGM VRLA, Telecom UPS, and Forklift batteries.
The RPT-E400 model is optimized for group connections of 2V batteries (6V to 48V, ~400Ah) and 12V batteries (24V to 48V).
High-Capacity Processing: Supports single-process restoration up to 40~400Ah
Energy Efficient & Cost-Saving: Utilizes SMPS switching control to achieve ultra-low power consumption with a maximum power draw of 2kW.
User-Friendly Operation: Optimization of operating conditions for all countries
| Performance & Technology |
| Regeneration Method: Optimized high-frequency pulse algorithm (up to 40kHz). |
| Multi-Battery Capability: Restores and charges multiple batteries simultaneously up to 6V~48V. |
| Power Supply Mode: Functions as a high-end power supply with manual parameter adjustments. |
| Desulfation & Protection: Minimizes electrode damage and restrains sulfate accumulation without causing physical or electrical stress. |
| Technical Specifications |
| DC Output Voltage: DC 6V ~ 48V (adjustable) |
| Output Current: Max. 30A (precise micro-control tailored to battery type) |
| Battery Capacity Range: 40Ah ~ 400Ah |
| AC Input Power: AC 210V ~ 240V / 50Hz ~ 60Hz |
| Power Consumption: 2kWh |
| Safety & Smart Control |
| Thermal Protection: Prevents temperature spikes through active output voltage/current regulation. |
| Over-Voltage & Line Protection: Input over-voltage protection and voltage variation stabilization to prevent potential thermal hazards. |
| Interface: Smart MICOM control system paired |
| Portability: Portable design optimized for field maintenance and worldwide operating conditions. |
| Dimensions (WxDxH): 345 × 530 × 230mm (13.6 × 20.9 × 8.7 in) |
| Weight : 16.4 kg / 36.2 lbs (Body and Cable) |
| Standard Configuration: |
| Includes 25 mm² (25SQ) (1.5m/4.9ft) |
| Technical Specifications |
| DC Output Voltage: DC 6V ~ 48V (adjustable) |
| Output Current: Max. 30A (precise micro-control tailored to battery type) |
| Battery Capacity Range: 40Ah ~ 400Ah |
| AC Input Power: AC 210V ~ 250V / 50Hz ~ 60Hz |
| Power Consumption: 2kWh |
